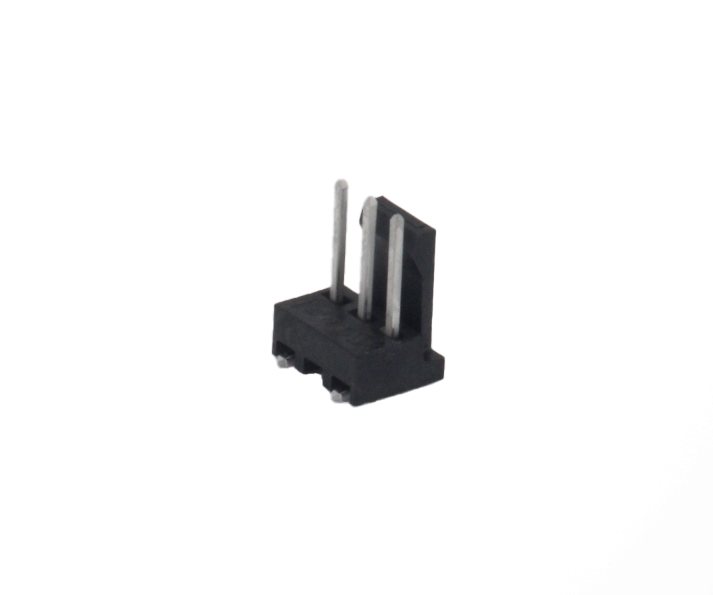

647166-3

TE Connectivity / AMP Brand

MTA-100 HEADER ASSEMBLY, SURFACE MOUNT, .. see full description

RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
647166-3
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Package Type:
Bag
Sealable:
No
Contact Transmits (Typical):
Power
Connector & Contact Terminates To:
Printed Circuit Board
Contact Mating Area Plating Material:
Tin-Lead
Contact Type:
Pin
Packaging Quantity:
500
Contact Underplating Material Thickness:
50 µin, 1.27 µm
UL File Number:
E28476
Circuit Application:
Signal
Connector System:
Wire-to-Board
PCB Contact Termination Area Plating Material:
Tin-Lead
Housing Material:
Nylon 4/6
Contact Current Rating (Max):
5 A
Contact Mating Area Plating Material Thickness:
150 – 250 µin, 3.81 – 6.3 µm
Panel Mount Feature:
Without
Number of Positions:
3
Housing Color:
Black
UL Flammability Rating:
UL 94V-0
Mating Retention:
With
PCB Mount Retention:
Without
PCB Thickness (Recommended):
.01 in, .25 mm
Strain Relief:
Without
Contact Underplating Material:
Nickel
Contact Base Material:
Copper Alloy
Contact Retention:
Without
Mating Retention Type:
Friction Lock
PCB Contact Termination Area Plating Material Finish:
Bright
Centerline (Pitch):
.1 in, 2.54 mm
CSA Rating:
Certified
Connector Mounting Type:
Board Mount
Agency/Standard:
CSA , UL
UL Rating:
Recognized
Operating Temperature Range:
-55 – 105 °C, -67 – 221 °F
Mating Post Length:
.29 in, 7.37 mm
Contact Shape:
Square
Termination Method to Wire & Cable:
Solder
PCB Mount Alignment:
Without
Contact Layout:
Inline
PCB Contact Termination Area Plating Material Thickness:
150 – 250 µin, 3.81 – 6.3 µm
Number of Rows:
1
Connector Height:
.34 in, 8.81 mm
PCB Mount Orientation:
Vertical
Operating Voltage:
250 VAC
Header Type:
Unshrouded
PCB Connector Assembly Type:
PCB Mount Header
CSA File Number:
LR7189
Termination Method to Printed Circuit Board:
Surface Mount
Packaging Method:
Bag/Box
Mating Alignment:
Without
Life Cycle:
Discontinued & Replaced
MTA-100 HEADER ASSEMBLY, SURFACE MOUNT,
Product Highlights:
  • MTA-100 Connectors
  • Number of Positions = 3
  • Mating Type = Header
  • Wire-to-Board Application
  • 2.54 mm Contact Centerline Spacing
Search Keywords:
6471663
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
1250
RECOMMENDED REPLACEMENT
3-647166-3
