770020-1 by te connectivity / amp brand
DATA SHEET

770020-1

TE Connectivity / AMP Brand

6 Position Rectangular Housing Connector Plug White 0.250" (6.35mm) .. see full description

RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
770020-1
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
PL
Number of Contacts:
6
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
31/Contact A
Operating Temperature:
-55 to 120 °C

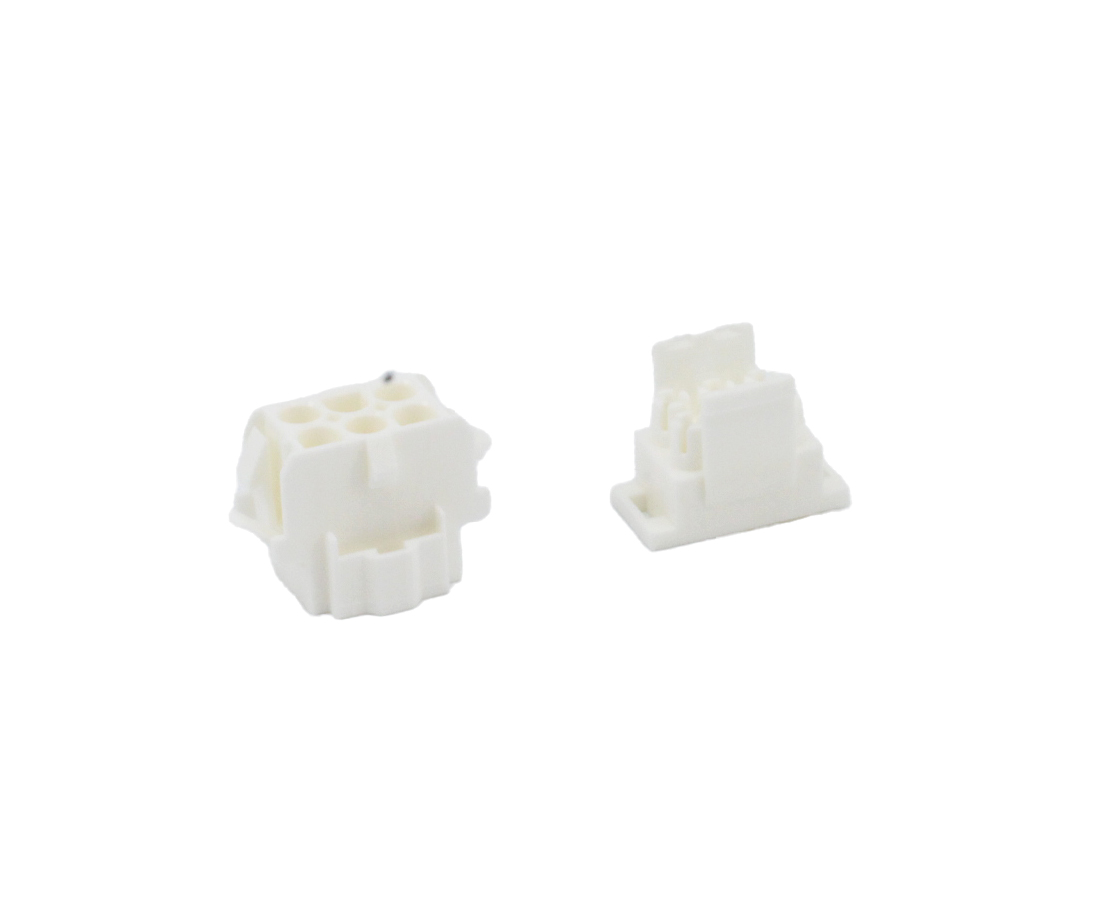

The 770020-1 is a 6-position 2-row matrix Plug Housing Kit made of nylon GF housing and body in white and pre-tin contact finish. It is suitable for use with the universal MATE-N-LOK headers for UMNL II connectors. It mates with plug housing. UL94V-0 Flammability rating Applications Consumer Electronics, Commercial, HVAC, Power Supplies, Portable Devices, Lighting
Product Highlights:
  • Housing
  • Universal MATE-N-LOK II
  • Not CompactPCI
  • 6.35 x 6.35 mm Centerline, Matrix
  • Number of Circuits = 6
Search Keywords:
7700201
IN STOCK: 99,528
Can Ship immediately
Manufacturer Stock:
1,786   can ship 12/6/24
Minimum Order:
25
Factory Lead-Time
4 Weeks can ship 12/19/24
Enter Quantity
Quantity
Unit Price
Ext. Price
25
$1.045
$26.125
250
$0.773
$193.250
500
$0.755
$377.500
1,000
$0.732
$732.000
2,500
$0.721
$1,802.500
5,000
$0.710
$3,550.000
7,500
$0.699
$5,242.500
10,000 +
$0.689
$6,890.000
Please Note: Item may be subject to tariff fee if shipping within the United States
Tools/3D Models
Request Free CAD Models
PDF 3D PDF
