794617-8 by TE Connectivity / Amp Brand
DATA SHEET

794617-8

TE Connectivity / Amp Brand

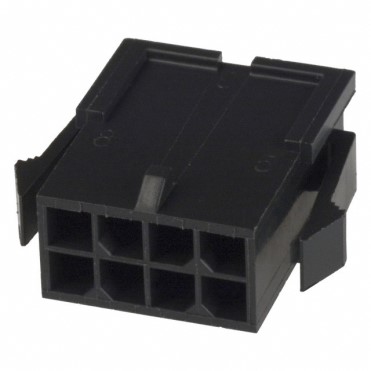

Connector Housing - Micro MATE-N-LOK Series - Receptacle - 8 Ways - 3 mm - Micro MATE-N-LOK Connectors. .. see full description

  • RoHS Compliant
  • Pack Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Amp Brand
Part No:
794617-8
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Package Type:
Pack
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
8
Maximum Voltage Rating:
250,250 VDC|VAC
Maximum Current Rating:
5/Contact A
Operating Temperature:
-40 to 105 °C
The 794617-8 is a 8-way 2-row Receptacle Housing with nylon 66/6 body and 3mm pitch spacing. This receptacle housing is suitable for use with Micro MATE-N-LOK connectors.
Product Highlights:
  • Housing
  • Housing Type = Receptacle
  • Number of Positions = 8
  • Number of Rows = Dual
  • 3.00 mm Centerline
Search Keywords:
7946178
IN STOCK: 65,663
Ships today, if you order in
Minimum Order:
50
Factory Lead-Time
15 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
50
$0.3286
$16.430
500
$0.2349
$117.450
1,000
$0.2309
$230.900
2,500
$0.2273
$568.250
5,000
$0.2262
$1,131.000
7,500
$0.2250
$1,687.500
10,000
$0.2239
$2,239.000
15,000 +
$0.2228
$3,342.000
Please Note: Item may be subject to tariff fee if shipping within the United States
