796689-2 by te connectivity / amp brand
DATA SHEET

796689-2

TE Connectivity / AMP Brand

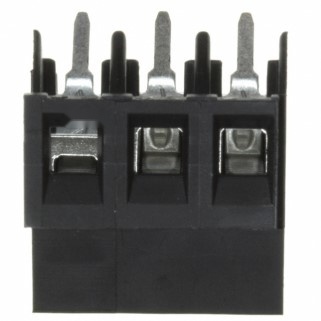

PCB Terminal Block - Header - Wire-to-Board - 2 Position - .197in (5 mm) Centerline - 35° Wire Entry - 30 to 12AWG - Screw, Rising Cage Clamp - Black. .. see full description

RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
796689-2
RoHS:
Yes
HTS:
8536694040
COO:
IT
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
300
Package Type:
Box
Type:
Eurostyle Block
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
5 mm
Number of Circuits:
2
Maximum Voltage Rating:
300 VAC
Maximum Current Rating:
17.5/Contact A
Wire Size:
12-30 AWG
Operating Temperature:
-40 to 105 °C
The 796689-2 is PCB terminal block with dimensions: 10.5 mm L x 12.5 mm D x 15 mm H. Operating temperature range is from -40 to 110 °C ( -40 to 230 °F ).
Product Highlights:
  • Connector
  • Connector Type = Wire Receptacle
  • Housing Color = Black
  • Not Side Stackable
  • Without Screw Flange
Search Keywords:
7966892
IN STOCK: 18,600
Can Ship immediately
Minimum Order:
25
Factory Lead-Time
8 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
25
$1.094
$27.350
300
$0.900
$270.000
600
$0.862
$517.200
1,200
$0.828
$993.600
2,700
$0.796
$2,149.200
5,100
$0.662
$3,376.200
7,500
$0.652
$4,890.000
10,200 +
$0.590
$6,018.000
