DT04-3P-E008 by te connectivity / deutsch automotive
DATA SHEET

DT04-3P-E008

TE Connectivity / Deutsch Automotive

REC, 3P, GRY, N, XCAP .. see full description

  • RoHS Compliant
  • Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-3P-E008
RoHS:
Yes
HTS:
8538906000
ECCN:
EAR99
Supplier Standard Pack:
1
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Termination Method:
Crimp
Number of Contacts:
3
Maximum Voltage Rating:
250 VDC
Maximum Current Rating:
13/Contact A
Operating Temperature:
-55 to 125 °C
TE Connectivity / Deutsch Automotive part DT04-3P-E008 is a rectangular electrical connector commonly used in automotive applications. It features a compact design with a three-pin configuration. The connector is color-coded in grey for easy identification and is designed for robust and reliable performance. This particular model is equipped with a receptacle, making it suitable for connecting wires or cables. The DT04-3P-E008 connector also includes an XCAP, which enhances its ability to withstand external vibrations and ensure consistent electrical connectivity.
Search Keywords:
DT043PE008
IN STOCK: 6,133
Can Ship immediately
Minimum Order:
10
Factory Lead-Time
13 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
10
$2.344
$23.440
50
$2.022
$101.100
250
$1.931
$482.750
500
$1.171
$585.500
1,000
$1.132
$1,132.000
2,500
$1.102
$2,755.000
5,000
$1.083
$5,415.000
7,500 +
$1.072
$8,040.000
Older Equivalent

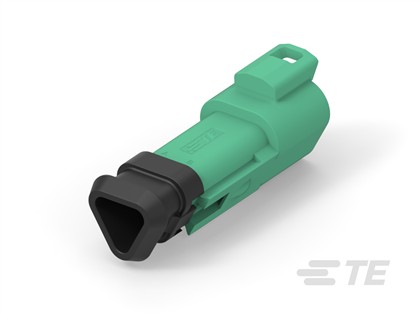

1-2600026-4
