PRD-11AY0-24 by te connectivity / p-b brand
DATA SHEET

PRD-11AY0-24

TE Connectivity / P&B Brand

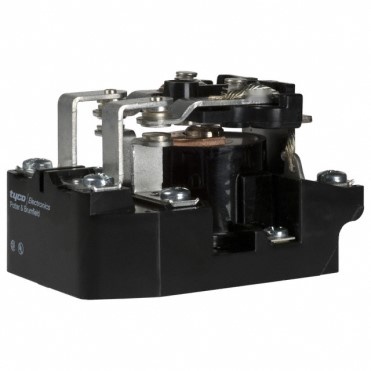

General Purpose Relay - DPDT (2 Form C) - 24VAC Coil - 25A Contact - 240VAC Switching - Non Latching Coil - Screw Terminal - Chassis Mount. .. see full description

RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
PRD-11AY0-24
Alias/AKA:
2-1393127-9
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 45 °C
The PRD-11AY0-24 is general purpose relay with dimensions: 85.73 mm L x 63.8 mm D x 63.5 mm H. Operating temperature range is from -55°C to 45°C.
Product Highlights:
  • PRD Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 25 Amps.
  • Monostable Coil Magnetic System
  • Input Voltage = 24 VAC
Search Keywords:
PRD11AY024
  Possible Replacement options available.  See Alternatives
IN STOCK: 0
Factory Lead-Time
17 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$57.36
$57.360
5
$51.18
$255.900
20
$48.22
$964.400
40
$45.58
$1,823.200
60
$44.89
$2,693.400
100
$44.22
$4,422.000
260 +
$43.55
$11,323.000
Suppliers Standard Package
Please Note: Item may be subject to tariff fee if shipping within the United States
Possible Replacement
PRD-11AG0-24
PRD-11AG0-24
VIEW PRODUCT
Tools/3D Models
Request Free CAD Models
