PRD-11DG0-12 by te connectivity / p-b brand
DATA SHEET

PRD-11DG0-12

TE Connectivity / P&B Brand

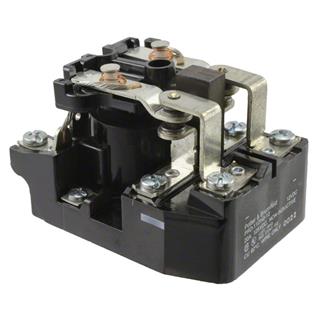

Power Relay 12VDC 30A DPDT(85.73x63.8x63.5)mm Chassis Mount .. see full description

RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
PRD-11DG0-12
Alias/AKA:
3-1393127-5
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 80 °C
The PRD-11DG0-12 from TE Connectivity / P&B Brand is chassis mount double pole double throw (DPDT) power relay with 12VDC coil voltage and 71 Ohms coil resistance. This relay has 30A contact curent and 240VAC max switching voltage. Dimensions of this relay are: 85.73 mm x 63.8 mm x 63.5 mm. Operating temperature range is from -55°C to 80°C.
Product Highlights:
  • PRD Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 30 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode
Search Keywords:
PRD11DG012
IN STOCK: 141
Can Ship immediately
Factory Lead-Time
17 Weeks
