RT314024 by te connectivity / p-b brand
DATA SHEET

RT314024

TE Connectivity / P&B Brand

General Purpose Relay - SPDT (1 Form C) - 24VDC Coil - 16A Contact - 400VAC Switching - Non Latching Coil - Flux Proof - PC Pin - Through Hole. .. see full description

RoHS Compliant
Carton Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
RT314024
Alias/AKA:
9-1393239-8
RoHS:
Yes
HTS:
8536410050
COO:
AT
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Carton
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
1.44 KOhm
The RT314024 is general purpose relay with operating temperature range from -40°C to 85°C.
Product Highlights:
  • RT1 Series
  • Contact Arrangement = 1 Form C, SPDT, 1 C/O
  • Contact Current Rating = 16 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode
Search Keywords:
RT314024
IN STOCK: 14,211
Ships today, if you order in
Minimum Order:
20
Multiple:
20
Factory Lead-Time
15 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
20
$3.27
$65.400
60
$1.63
$97.800
260
$1.61
$418.600
500
$1.58
$790.000
1,000
$1.56
$1,560.000
2,500
$1.54
$3,850.000
5,000
$1.51
$7,550.000
7,500 +
$1.49
$11,175.000
Suppliers Standard Package

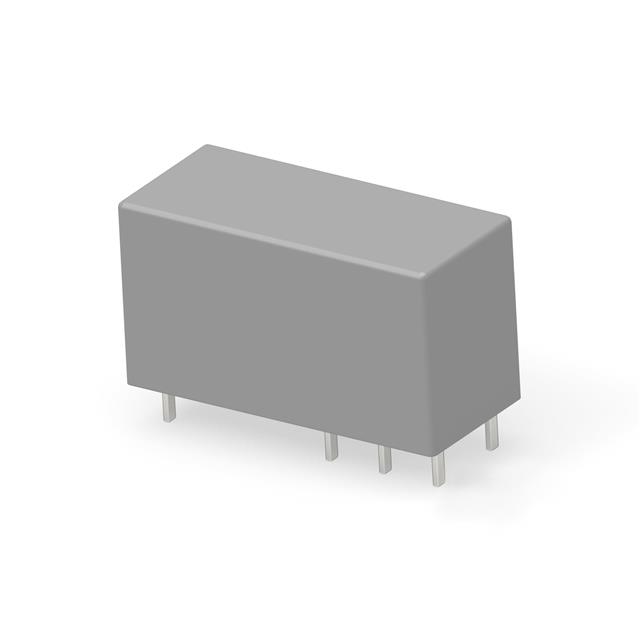

Older Equivalent
RT314024WG
RT314024WG
