TXR21AB00-0804AI by te connectivity / raychem brand
DATA SHEET

TXR21AB00-0804AI

TE Connectivity / Raychem Brand

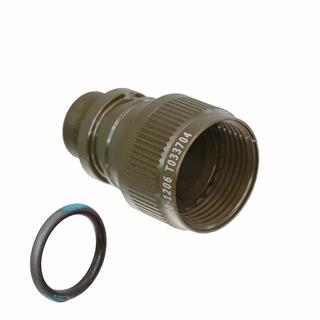

Backshell - Heat Shrink Adapter - 0.711" (18.05mm) Outside Diameter - Shell Size 8 - 7/16-28 UNEF Thread - 180° Cable Exit - Entry Size 4. .. see full description

RoHS Non-Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
TXR21AB00-0804AI
Alias/AKA:
533821-000
RoHS:
No
HTS:
8538908180
COO:
CH
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Shell Size:
8
Angular Function:
180 °
Coupling:
N/A
Body Material:
Aluminum Alloy
Body Plating:
Olive Drab Cadmium Over Electroless Nickel
Entry Size:
4 mm
Operating Temperature:
N/A
The TXR21AB00-0804AI from TE Connectivity / Raychem Brand is shielded backshell, heat shrink adapter with shell size 8, entry size 4 and ring to suit single braid. This backshell has 0.711" (18.05mm) outside diameter, 7/16-28 UNEF thread and 180° cable exit. The TXR21AB00-0804AI include: 1 backshell, 1 braid, 1 O-ring, 2 screws and 1 tinel ring. Operating temperature range is from -65 to 175 °C ( -85 to 347 °F ).
Product Highlights:
  • Terminate To Cable
  • Style = Tinel Lock
  • Connector Code = 21
  • Straight
  • Shell Size = 8
Search Keywords:
TXR21AB000804AI
IN STOCK: 0
On Order:
211   can ship 2/26/25
MOQ for out of Stock Qty:
13
Factory Lead-Time
61 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$88.07
$88.070
5
$71.79
$358.950
10
$69.88
$698.800
13
$69.18
$899.340
25
$63.83
$1,595.750
38
$63.19
$2,401.220
50 +
$62.56
$3,128.000
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
