ER422D-5A by teledyne relays
DATA SHEET

ER422D-5A

Teledyne Relays

Electromechanical Relay - 5VDC - 61Ohm - 1ADC/0.25AAC - DPDT - (9.4x9.4x7.11)mm - THT Latching Relay. .. see full description

  • RoHS Non-Compliant
  • Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
  • Discontinued & Replaced
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Teledyne Relays
Part No:
ER422D-5A
Alias/AKA:
ER422D-5A/G
RoHS:
No
HTS:
8536410020
ECCN:
EAR99
Supplier Standard Pack:
100
Relay Construction:
Latching Double Coil
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
1DC,0.25AC A
Mounting:
Through Hole
Operating Temperature:
-65 to 125 °C
Dimension:
9.4 x 9.4 x 7.11 mm
Termination Style:
PC Pin
Coil Current:
81.96 mA
Contact Form:
2 Form C
Life Cycle:
Discontinued & Replaced
The ER422D-5A magnetic-latching TO-5 relay, originally conceived and developed by Teledyne, has become one of the industry standards for low-level switching from dry circuit to 1 ampere. Designed for high-density PC board mounting, its small size and low coil power dissipation make the 422 relays some of the most versatile ultraminiature relays available. The Series 422D utilize discrete diodes for coil suppression and polarity reversal protection.
Search Keywords:
ER422D5A
  This product is not in stock and cannot be back-ordered
  This product is NOT RoHS Compliant.  See Alternatives
RECOMMENDED REPLACEMENT

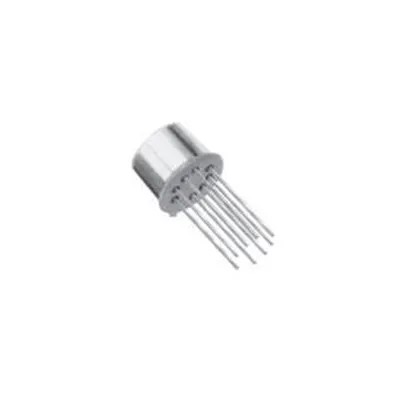

ER422D-5B/G
ER422D-5B/G
