S172D-5
Teledyne RelaysElectromechanical Relay - 5VDC - 64Ohm - 1A - DPDT - (9.6x10.42x9.4)mm - SMD Centigrid Commercial Relay. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Teledyne Relays
Part No:
S172D-5
Alias/AKA:
S172D-5/G
RoHS:
No
HTS:
8536410020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack
50
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
1 A
Mounting:
Surface Mount
Operating Temperature:
-55 to 85 °C
Dimension:
9.6 x 10.42 x 9.4 mm
Termination Style:
Solder
Coil Current:
78.12 mA
Contact Form:
2 Form C
The S172D-5, S172D Series surface mount Centigrid® relay is an ultra miniature, hermetically sealed, armature relay for commercial applications. Its low profile height (0.47) and 0.1" grid spaced terminals make it an ideal choice where extreme packaging density and⁄or close PC board spacing are required. The specially formed leads are pre-tinned to make the relays ideal for all types of surface mount solder reflow processes. The S172D relay has an internal discrete silicon diode for coil transient suppression.
Search Keywords:
S172D5
This product is NOT RoHS Compliant. See Alternatives
IN STOCK:
355
Can Ship immediately
Factory Lead-Time
20 Weeks
Quantity
Unit Price
Ext. Price
1
$114.83
$114.830
5
$113.10
$565.500
10
$101.13
$1,011.300
25
$98.04
$2,451.000
50
$92.42
$4,621.000
100
$91.03
$9,103.000
250
+
$89.67
$22,417.500
Tools/3D Models
Product Guides
CUSTOMERS
ALSO BOUGHT

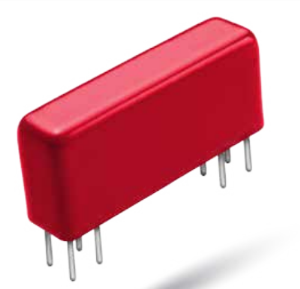

2342-12-000
