E13-00J by zf electronic systems
DATA SHEET

E13-00J

ZF Electronic Systems

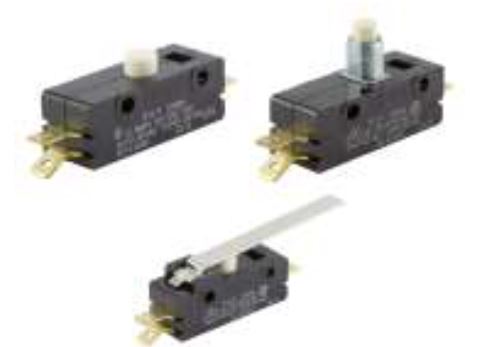

Snap Action Switch - SPDT - Button w/ferrule - 15A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount .. see full description

RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E13-00J
Alias/AKA:
0E1300J0
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Thermoplastic Nylon/Button
Contact Rating @ Voltage:
1118.55 A
Maximum Movement Differential:
0.38 mm
Operating Force:
4.17 N
Termination Style:
Quick Connect,Faston
Dimension:
67.12 x 16.26 mm
Body Orientation:
Straight
IP Rating:
N/A
The ZF ELECTRONICS CORP E13-00J is a high-quality Snap Action Switch featuring a single-pole, double-throw configuration with a button w/ferrule design. This switch is capable of handling up to 15A at 125/250VAC and 2A at 48VDC, making it suitable for a wide range of applications. It is equipped with quick connect terminals for easy installation and screw mounts for secure placement. Trust ZF ELECTRONICS CORP for reliable and durable switches for your electronic projects.
Product Highlights:
  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E13, E14, E29, E30 and G13 Series.
Search Keywords:
E1300J
IN STOCK: 4,704
Ships today, if you order in
Minimum Order:
5
Factory Lead-Time
20 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$4.356
$21.780
50
$3.901
$195.050
100
$3.862
$386.200
250
$3.431
$857.750
500
$3.397
$1,698.500
1,000
$3.363
$3,363.000
2,500
$3.330
$8,325.000
5,000 +
$3.296
$16,480.000
